ENGINEERING GUIDE

Light Sheet Microscopy: How It Works, Types and Instrument Control

How light sheet fluorescence microscopes image living samples in 3D, how SPIM, multiview, Bessel, lattice and adaptive optics systems differ, and what it takes to control one.

Last updated October 2026 · Written by Sciotex Engineering

Start with the basics ↓
Talk to a microscope software engineer
Light sheet microscope geometry: a laser light sheet illuminates one plane of the sample from the side while a detection objective and camera image it from abovesCMOS cameraDetection objectiveSampleIllumination objectiveLASERLight sheetz-scan(galvo /piezo)Illuminate one plane · image it at 90° · step to build a 3D volume
Light sheet geometry: the sample is lit from the side by a thin sheet of laser light and imaged from above, so only the plane in focus fluoresces.
What it isFluorescence microscopy that lights one thin plane at a time and images it from the side
Why it mattersFast 3D imaging with far less photobleaching and phototoxicity
Main typesSPIM, scanned, multiview, Bessel, lattice, adaptive optics
Sciotex roleControl software for HHMI light sheet and adaptive optics microscopes

DEFINITION

What is light sheet microscopy?

Light sheet microscopy, also called light sheet fluorescence microscopy (LSFM) or selective plane illumination microscopy (SPIM), illuminates a sample from the side with a thin sheet of laser light and records the fluorescence with a camera on a perpendicular detection axis. Only the plane being imaged is lit, so each image is optically sectioned and the rest of the sample is spared. Stepping through the specimen builds a 3D volume; repeating that builds a 3D movie.

The names overlap. SPIM was the original name for the technique, LSFM is the umbrella term, and light sheet microscope covers both commercial systems and instruments built in research labs. Variants such as multiview, Bessel beam and lattice light sheet microscopes change how the sheet is formed or how many views are recorded, but the principle is the same.

This guide explains how light sheet microscopy works, the main types, how it compares with confocal and two-photon microscopy, and the part most introductions skip: how these instruments are controlled. Sciotex has developed custom control software for light sheet, lattice light sheet and adaptive optics microscopes, including instruments at HHMI’s Janelia Research Campus.

HOW IT WORKS

How light sheet microscopy works

A light sheet microscope separates illumination and detection onto two perpendicular axes. That one design choice is what makes it fast and gentle.

LaserOne or more wavelengths
→
Form the sheetCylindrical lens or scanned beam
→
Excite one planeOnly the focal plane fluoresces
→
Detect at 90°Objective and sCMOS camera
→
Step and repeatPiezo or galvo builds the volume

Because a whole plane is captured in one camera exposure, rather than point by point as in a confocal, light sheet systems can record hundreds of planes per second. And because only the imaged plane is lit, the sample receives far less total light, so living embryos and cells can be imaged for hours or days. That gives light sheet microscopy six practical advantages:

Optical sectioning

Only the focal plane is illuminated, so out-of-focus blur is largely avoided at the source.

Low phototoxicity

Far less light reaches the sample, keeping live specimens healthy over long experiments.

Speed

Whole planes are captured per camera frame, enabling fast volumetric imaging.

Large samples

Embryos, organoids, whole brains and cleared organs can be imaged in 3D.

Long time-lapse

Low bleaching makes multi-hour and multi-day recordings practical.

Quantitative 4D data

Volumes over time support cell tracking, lineage tracing and 4D analysis.

TYPES

Types of light sheet microscopes

Light sheet microscopes differ mainly in how the sheet is formed and how many views they record. Further down the table, systems generally trade simplicity for resolution, coverage or depth.

Types of light sheet microscopes compared
TypeHow the sheet is madeStrengthsTypical use
SPIM (static sheet)A cylindrical lens forms a fixed sheetSimple, robust, fastEmbryos and larger specimens
Scanned light sheetA galvo scans a thin beam to build the sheetUniform sheet, adjustable thicknessGeneral live imaging
Multiview light sheetTwo or more illumination and detection arms record several views at onceEven coverage of large, scattering specimensWhole embryos, developmental biology
Bessel beam light sheetA scanned Bessel beam gives a thin, extended sheetThinner sheet, better axial resolutionSingle cells and subcellular imaging

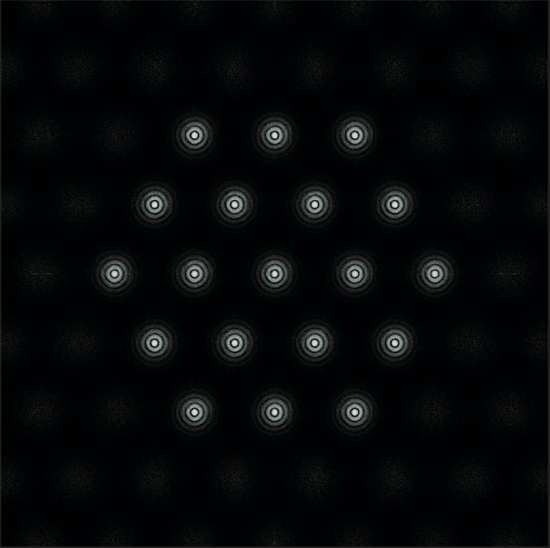

Lattice light sheetA spatial light modulator shapes a 2D optical lattice into an ultrathin sheetVery high resolution with low phototoxicitySubcellular dynamics in living cells
Adaptive optics light sheetDeformable mirrors or SLMs correct wavefront aberrationsSharp images deep inside tissueCells within living organisms
Cleared tissue light sheetLarge-field, long working distance optics for transparent samplesWhole organs at cellular resolutionNeuroscience and anatomy

Swipe the table to see all columns →

Sciotex has developed control software across this range, including multiview, Bessel beam, lattice and adaptive optics systems. For more depth, see lattice light-sheet microscopy and adaptive optics microscopy.

COMPONENTS

Light sheet microscope components

Every light sheet microscope, from a teaching setup to a lattice system, is built from four groups of parts. Getting them to work together is mostly a timing and software problem.

Illumination: lasers and sheet forming

Lasers at one or more wavelengths, switched by acousto-optic modulators or Pockels cells. The sheet is made by a cylindrical lens, a galvanometer mirror scanning a beam, or a spatial light modulator for Bessel and lattice sheets.

Detection: objective, filters and camera

A detection objective at 90 degrees to the sheet, emission filters and fast scientific cameras, usually sCMOS. See sCMOS vs EMCCD cameras.

Sample positioning and motion

Piezo stages or objective scanners step through the sample, while motorized stages and rotation mounts position it and record extra views.

Control, acquisition and data

DAQ or FPGA hardware that times every device, acquisition software that runs the experiment, and storage fast enough for gigabytes per second. See data acquisition.

INSTRUMENT CONTROL

Synchronization: the hardest part of a light sheet microscope

The optics get the attention, but most of the engineering in a working light sheet microscope is in keeping every device in step. One volume can involve hundreds of camera exposures, each matched to a galvo position, a piezo step and a laser pulse, repeated for hours.

TimingHardware-timed waveforms, not software loops. Galvos, piezos, lasers and camera triggers run from shared clocks on DAQ or FPGA hardware, so each exposure lines up with the sheet to within microseconds.
DataTwo cameras at full speed can produce well over 1 GB per second. Acquisition software must stream to disk without dropping frames and keep metadata with every plane.
AdaptationAdvanced systems adjust themselves during an experiment, refocusing the sheet or correcting aberrations from image feedback in the gaps between volumes.

COMPARISON

Light sheet vs confocal vs two-photon microscopy

All three image fluorescent samples in 3D, but they spend light very differently. Confocal and two-photon microscopes scan a focused point through the sample; light sheet microscopes illuminate a whole plane at once.

Choose light sheet when…

  • You need fast 3D imaging of living samples
  • Phototoxicity or bleaching limits how long you can image
  • The sample is large: embryos, organoids or cleared organs
  • You need long time-lapse recordings at high time resolution
  • The sample can be mounted for side illumination

Choose confocal or two-photon when…

Confocal microscopy remains the flexible workhorse for fixed samples, thin specimens and standard slides, where mounting a sample for a light sheet would be awkward. Two-photon microscopy reaches deeper into scattering tissue, such as the brain of a living animal, because its infrared excitation scatters less. Many labs use all three, and adaptive optics can extend both two-photon and light sheet imaging deeper.

See microscope systems we've worked on
Custom microscope software

APPLICATIONS

Light sheet microscopy applications

Speed, gentleness and 3D coverage have made light sheet microscopy a standard tool wherever living specimens must be watched in three dimensions over time.

1Developmental biology

Imaging whole zebrafish, fruit fly and other embryos for hours or days as they develop, often with multiview systems that capture the entire specimen.

2Cell biology

Following organelles, the cytoskeleton and membranes inside living cells at high resolution, where Bessel and lattice light sheets excel.

3Neuroscience

Whole-brain functional imaging in small model organisms, and cellular-resolution maps of cleared brains.

4Cleared tissue and organs

Imaging whole organs and tissue blocks made transparent by clearing, at cellular resolution in 3D.

5Organoids and 3D cultures

Watching organoids and spheroids grow and respond to drugs, with less light damage than point-scanning methods.

6Deep-tissue imaging

Combining light sheets with adaptive optics to image cells inside living organisms, where tissue would otherwise blur the image.

BUILDING ONE

Building or upgrading a light sheet microscope: the software side

Commercial light sheet systems cover many needs, but research groups often build or modify instruments for a specific experiment. The optics are only half the job; these software and control steps decide whether a custom light sheet microscope works day to day. See also microscope hardware synchronization.

1. Define the experiment

Sample, labels, volume size, speed and duration set every other requirement.

2. Plan the timing architecture

Choose DAQ, FPGA or real-time hardware that can drive galvos, piezos, lasers and cameras from one clock.

3. Synchronize the hardware

Generate hardware-timed waveforms and camera triggers so every exposure matches the sheet position.

4. Build the acquisition pipeline

Stream multi-camera data to disk without dropped frames, with metadata for every plane.

5. Add calibration and alignment tools

Sheet-to-focal-plane alignment, galvo and piezo calibration, and checks users can run themselves.

6. Make it usable and supported

Interfaces scientists can run without the developer, and support as experiments change.

DATA RATES

Light sheet data: planning for gigabytes per second

Light sheet microscopes are some of the most data-hungry instruments in a lab. Estimating the data rate early decides the cameras, computers, storage and network the system needs.

Data rate = pixels per frame × bytes per pixel × frames per second × number of cameras

Worked example. A 2048 × 2048 pixel sCMOS camera at 16 bits (2 bytes per pixel) produces 2048 × 2048 × 2 ≈ 8.4 MB per frame. At 100 frames per second that is about 839 MB/s; with two cameras, about 1.7 GB/s, or roughly 6 TB per hour of continuous imaging.

That is why acquisition software for light sheet systems is built around streaming, compression and fast storage, and why GPU and FPGA processing are often used to reduce data on the fly. Sciotex builds distributed multi-camera acquisition and GPU and FPGA image processing for exactly these loads.

FAQ

Light sheet microscopy FAQs

Light sheet microscopy, also called light sheet fluorescence microscopy (LSFM) or SPIM, lights a sample from the side with a thin sheet of laser light and images the fluorescence from a perpendicular axis. Only the imaged plane is illuminated, giving fast, optically sectioned 3D imaging with low phototoxicity.

A confocal microscope scans a focused point through the sample and uses a pinhole to reject out-of-focus light, so the whole depth is illuminated for every plane. A light sheet microscope illuminates only the plane being imaged and captures it in one camera frame, making it much faster and gentler for live 3D imaging.

SPIM, selective plane illumination microscopy, was the original name for light sheet microscopy, using a cylindrical lens to form a static sheet. Today SPIM and LSFM are often used interchangeably.

Lattice light-sheet microscopy uses a spatial light modulator to shape a two-dimensional optical lattice into an ultrathin light sheet, enabling high-resolution 3D imaging of living cells with very low phototoxicity. See lattice light-sheet microscopy.

Optical sectioning at the source, low photobleaching and phototoxicity, high volumetric imaging speed, the ability to image large specimens such as embryos and cleared organs, and long time-lapse recordings.

Samples must be mounted so they can be lit from the side, absorbing structures can cast shadows or stripes, scattering degrades the sheet in thick tissue, and the data volumes are very large. Multiview designs, adaptive optics and good acquisition software address many of these.

Most light sheet microscopes use sCMOS cameras for their speed, large sensors and low read noise. EMCCD cameras are still used for the lowest-light applications. See sCMOS vs EMCCD cameras.

Commercial systems ship with vendor software, and open-source tools are widely used. Custom and research instruments usually need custom control software that synchronizes the hardware and streams data, which is what Sciotex develops as custom microscope software.

Building or upgrading a microscope?

Sciotex has developed more than 30 custom microscope software applications for over 15 research institutions, including control software for light sheet, lattice light sheet and adaptive optics microscopes. A Sciotex engineer co-authored the 2014 Science paper that introduced lattice light-sheet microscopy.
