Benchtop Surface Defect Detection System

Defect Detection and Grading

Surface Grading and Defect Identification on Reflective Surfaces.

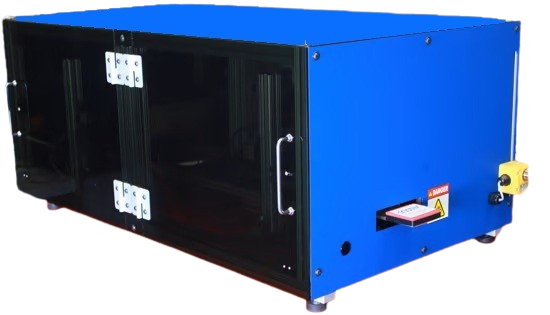

The Benchtop Surface Defect Detection System is a desktop vision platform that automatically inspects flat or nearly flat parts for subtle surface defects and cosmetic flaws. In this example, we demonstrate the technology by inspecting collectible trading cards.

Multi station imaging captures chromatic, texture, and specular information.
Benchtop system ideal for labs, grading/quality cells.
Designed and engineered by Sciotex for high resolution surface inspection.
Custom developed and built in-house here in the US.
Data remains on-premise without relaince on 3rd party APIs or cloud systems.

Schedule a Free
Inspection Consultation

What this System Inspects

This system is optimized for thin or flat items that demand tight surface quality control and consistent grading or classification.

Typical applications include:

Printed, coated, or laminated cards, labels, and inserts.
Flat consumer goods or collectibles requiring cosmetic grading.
Flat metal, plastic, or composite panels where surface finish and minor damage matter.
Any flat part where creases, dents, scratches, or staining affect value or performance.

How the Inspection System Works

The system is designed for a simple, repeatable operator workflow while maintaining precise, automated inspection. For this example we use collectible trading cards.

The user places a part on a precision vacuum‑hold plate to keep it flat.
A linear stage or motion subsystem moves the part through the imaging station.
The part is held flat while images are captured under optimized lighting.
The part is returned to the operator and the system displays the inspection result and defect map.

Vacuum hold‑down, smooth contact surfaces, and attention to ergonomics help ensure high image quality and safe, comfortable operation.

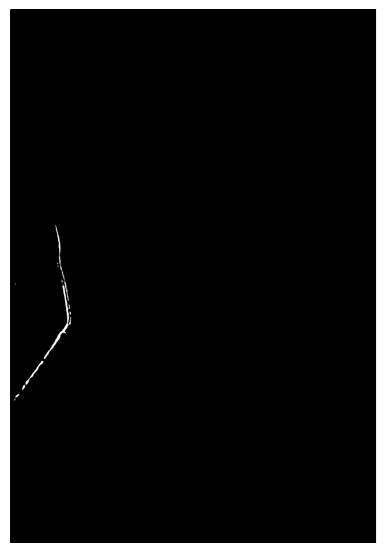

Crease Detected

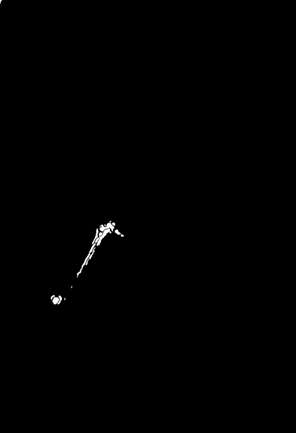

Indentation Detected

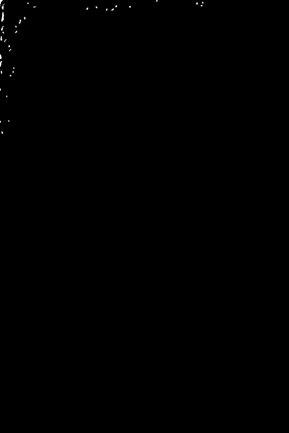

Water Damage Detected

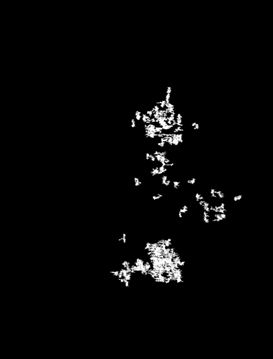

Scuffing Detected

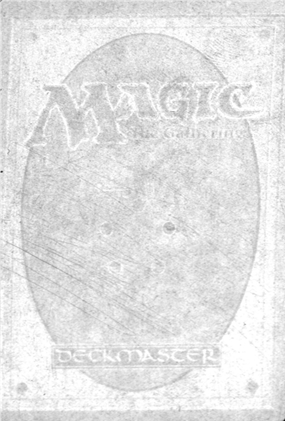

Hair Line Scratches Detected

Key Inspection and Defect Detection Capabilities

Sciotex software algorithms analyze the trading card images from all stations to detect, localize, and classify surface defects.

Creases and bends visible in texture and specular channels.
Indentations and impressions revealed by shading and directional lighting.
Water damage and staining identified by combined color and texture changes.
Scuffing and wear patterns across coatings or printed areas.
Hair‑like scratches that only appear under specific highlight conditions.

The system can generate an overall quality or grade score, along with detailed defect information and images for review or auditing.

Integration and Data Management

Even as a benchtop platform, the system supports robust data capture and integration with broader quality processes.

Stores defect images and extracted defect information for each inspected part.
Exports reports summarizing defect types, frequencies, and severity over time.
Optional connectivity to databases, MES, or grading/quality systems for traceability and analytics.

This makes the system not only a powerful inspection station, but also a rich data source for process improvement and continuous quality monitoring.

Surface Defect Detection Demo Video

When to choose a benchtop surface defect system:

Surface quality and cosmetic appearance directly impact value or acceptance.
You need highly repeatable, objective grading that manual inspectors struggle to maintain.
Volumes are moderate, high‑mix, or better suited to a dedicated benchtop cell than full in‑line automation.

It can also serve as a reference system for defining inspection standards that may later be deployed in larger in‑line systems.
