Machine Vision has become a core enabling technology for modern manufacturing and logistics, providing automated inspection, measurement, and guidance that far exceed the speed and consistency of manual methods. Machine vision combines industrial cameras, optimized lighting, optics, and powerful software algorithms, that transform raw images into actionable decisions that keep production lines running efficiently and products within tight tolerances.
For a deeper look at how an automated vision system is used across manufacturing lines, see our guide to machine vision systems in manufacturing.
Across industries such as electronics, automotive, pharmaceuticals, food and beverage, and consumer goods, Machine Vision is now central to quality control strategies. It detects defects earlier, automates repetitive tasks, generates traceable data, and supports data-driven process improvement. When deployed correctly, Machine Vision delivers a measurable return on investment through reduced scrap, fewer customer complaints, and higher throughput.
Why Manufacturing Engineers Choose Machine Vision Systems
Modern production environments demand precision that exceeds human capabilities. Machine vision systems deliver:
- Speed: Inspect 1,000+ parts per minute vs. 20-30 manually
- Consistency: 99.9%+ accuracy with zero fatigue
- Cost Reduction:** 30-50% scrap reduction, 20-40% labor cost savings
- Traceability:** Complete audit trails for ISO compliance
For engineers evaluating vision systems for manufacturing the decision often comes down to three factors: accuracy requirements, production volume, and integration complexity. Sciotex specializes in designing custom vision inspection systems that match these requirements precisely.
What Machine Vision Is and How It Works
Machine Vision refers to the use of computer-based imaging systems to capture and interpret visual information for automatic inspection, measurement, identification, and guidance tasks. At its core, a Machine Vision system performs three high-level functions:
- Captures images of a part, assembly, or scene using cameras and lighting.
- Processes those images using algorithms that extract features, measure dimensions, or classify defects.
- Makes automated decisions (such as pass/fail) and communicates them to other equipment, such as PLCs, robots, or sorting systems.
Industrial Machine Vision emphasizes repeatability and precision. Lighting is controlled to minimize shadows and reflections, lenses are selected for minimal distortion, and exposure settings are tuned so that features of interest appear clearly and consistently. The result is a robust imaging environment that supports reliable automated analysis.

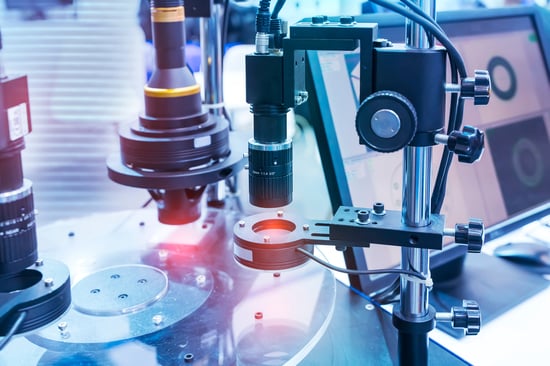

Core Components of a Machine Vision System
A fully engineered Machine Vision solution is more than a camera pointed at a conveyor. It typically includes several integrated components that must work together effectively:
- Illumination: LED ring lights, bar lights, backlights, in various machine vision lighting colors provide consistent lighting that highlights edges, defects, or surface features. The lighting strategy is often the single largest factor in system robustness.
- Lenses and Cameras: Industrial machine vision cameras capture images at the required resolution and frame rate. C-mount lenses, telecentric lenses, or specialized optics and polarization techniques are chosen based on field of view, working distance, and depth of field requirements.
- Image Processing Hardware: Industrial PCs, smart cameras, or edge-computing devices run image-processing algorithms, sometimes including CPU, GPU and FPGA for Machine Vision and acceleration for deep learning.
- Machine Vision Software: Tools perform tasks such as pattern matching, blob analysis, edge detection, barcode/OCR reading, color analysis, and 3D reconstruction. Modern platforms may also include deep learning modules for complex defect classification.
- Interfaces and I/O: Ethernet, fieldbus protocols, digital I/O, and industrial communication interfaces connect the Machine Vision system to PLCs, robots, HMIs, and databases. This enables real-time control (ejecting bad parts, stopping the line) and data logging.
Together, these elements produce a closed-loop inspection system that can operate at line speed, often inspecting hundreds or thousands of units per minute with no loss of concentration or consistency.
Typical Applications of Machine Vision for Quality Control
Machine Vision provides value wherever products must be inspected or identified quickly and consistently. Common quality-focused industrial machine vision systems applications include:
- Surface Defect Detection: Identifying scratches, dents, pits, inclusions, discoloration, or other cosmetic and functional defects on metals, plastics, glass, or coated surfaces.
- Dimensional Measurement: Measuring distances, diameters, angles, and clearances to verify that parts meet engineering specifications. When calibrated, Machine Vision can perform precise metrology tasks inline.
- Assembly Verification: Ensuring the right components are present, correctly oriented, and fully seated. This can include verifying that labels are applied in the correct position or that connectors are fully inserted.
- Code Reading and OCR: Reading 1D and 2D barcodes, alphanumeric characters, and date/lot codes for traceability, serialization, and compliance.
- Color and Print Inspection: Validating label print quality, color matching, and the presence of required symbols or regulatory markings.
Industry-specific examples include solder joint inspection in electronics, weld bead analysis in automotive, fill-level and cap inspection in food and beverage, and blister pack verification in pharmaceuticals.
Examples of an Automated Vision System
To better illustrate how Machine Vision is applied in real production environments, consider the following typical automated inspection examples:
Example 1: High-Speed Bottle and Cap Inspection
A beverage manufacturer runs a high-speed line that fills, caps, and labels bottles. Machine Vision stations are installed at several points:
- After filling, a camera and backlight measure the liquid level to ensure it falls within an acceptable band.
- At the capping station, a vision system verifies that caps are present, properly seated, and not cross-threaded.
- Downstream, another camera checks that labels are present, correctly oriented, and free from wrinkles or tears, while also verifying that printed expiration dates are legible.
When an issue is detected, the system signals a reject mechanism to remove the bottle from the line automatically. This type of inspection minimizes the risk of underfilled products reaching customers and reduces the need for manual inspectors stationed along the conveyor.
Example 2: PCB Assembly and Solder Inspection
In electronics manufacturing, Machine Vision performs automated optical inspection (AOI) of printed circuit boards:
- The system captures high-resolution images of each PCB using telecentric lenses to reduce perspective distortion.
- Pattern-matching tools confirm that components are present, correctly oriented, and placed in the right positions.
- Solder joints are analyzed for defects such as bridges, insufficient solder, tombstoning, and cold joints.
- Barcodes or 2D codes on the boards are read to associate inspection data with individual serial numbers, enabling full traceability.
This process allows manufacturers to identify defects immediately after reflow soldering or final assembly, significantly reducing the cost of rework and ensuring that only fully compliant boards move to final test.
Example 3: Precision Machined Part Measurement
A company that produces precision metal components for the automotive sector deploys inline Machine Vision on a machining center output:
- Each part is placed in a fixture where multiple cameras view critical features from different angles.
- Calibration targets allow the system to convert pixel measurements into real-world units.
- The system measures diameters, hole locations, chamfer sizes, and overall length to verify compliance with CAD specifications.
- Parts that fall outside tolerance are automatically diverted to a rework queue.
This approach replaces periodic manual sampling with 100% inspection, providing far greater confidence in product quality and enabling real-time monitoring of tool wear.
Example 4: Plastic Injection Molding Part Inspection
An injection molding plant uses Machine Vision Systems for molded part inspection as parts exit the mold:
- Cameras check for short shots, flash, warping, or sink marks.
- Vision tools confirm that all required features—such as clips, ribs, and bosses—are fully formed.
- Systems can also verify that inserts (metal inserts or threaded inserts) are present and correctly positioned.
Early detection of molding issues allows technicians to adjust process parameters immediately, reducing scrap and protecting downstream assembly operations from defective components.
Industrial Vision Systems vs. Traditional Inspection Methods
| Factor | Manual Inspection | Machine Vision Systems |
|---|---|---|
| Speed | 20–30 parts/min | 1,000+ parts/min |
| Accuracy | 80–95% (fatigue-dependent) | 99.9%+ consistent |
| Documentation | Manual logging | Automatic image archival |
| Cost Structure | Ongoing labor expense | Upfront investment, low operational cost |
Manufacturing facilities implementing vision system technology typically see ROI within 7-18 months. This payback accelerates in high-volume environments where even small quality improvements translate to significant savings.
AI, Deep Learning, and 3D in Machine Vision
Traditional Machine Vision relies on rule-based algorithms: thresholds, geometric checks, and pattern matching. These are powerful when defects are well-defined and parts are highly consistent. However, some applications involve more natural variation, complex textures, or defects that are hard to express in simple rules.
Deep learning extends AI Machine Vision to these harder problems:
- Deep-Learning-Based Classification: A neural network is trained on labeled examples of good and bad parts. Over time, it learns to differentiate subtle defect patterns.
- Segmentation and Anomaly Detection: AI can identify problem regions in an image, even when the exact defect types are not fully enumerated in advance.
3D Machine Vision, using structured light, laser triangulation, or stereo imaging, adds height and shape data. This enables:
- Volume and coplanarity measurements.
- 3D position and orientation for robot guidance.
- Detection of defects that manifest in height variations rather than color or intensity changes.
Together, AI and 3D Machine Vision expand the range of tasks that a vision inspection system can be automated, pushing automated quality control into areas that once seemed possible only for skilled human inspectors.
Typical ROI from Machine Vision Implementations
Organizations often consider Machine Vision Cost and investments through a financial lens, focusing on payback period and long-term return on investment (ROI). While exact numbers depend on the application and production volume, several common ROI drivers recur across industries.
Direct Cost Savings
Machine Vision reduces several direct costs:
- Reduced Scrap and Rework: By catching defects earlier and more consistently, fewer defective units move downstream or out the door. The savings from lower material waste and rework labor often mount quickly, especially for high-value products.
- Lower Labor Costs for Inspection: Manual visual inspection is labor-intensive, subject to fatigue, and limited in speed. A Machine Vision system can often replace or significantly augment multiple human inspectors, enabling staff to be redeployed to higher-value tasks.
- Fewer Field Failures and Returns: Improved outgoing quality translates into fewer warranty claims, returns, and penalties, as well as better customer satisfaction.
When these factors are quantified, many Machine Vision projects deliver payback in 6–24 months, depending on complexity, equipment cost, and production volumes.
Productivity and Capacity Gains
Beyond direct cost savings, Machine Vision improves overall productivity:
- Higher Line Speeds: Automated inspection can keep up with high-speed production, allowing lines to run faster without sacrificing quality. In some cases, inspection becomes so reliable that producers can justify increasing throughput while maintaining or improving defect rates.
- Reduced Unplanned Downtime: By continuously monitoring quality, Machine Vision can reveal process drifts early. Operators can intervene before problems become severe enough to halt production.
- Better Use of Skilled Labor: Instead of performing repetitive inspection tasks, skilled technicians can focus on root-cause analysis, process improvement, and equipment maintenance.
These productivity gains may be more difficult to quantify precisely than direct savings, but they often represent a significant portion of the long-term ROI.
Data, Traceability, and Compliance
Machine Vision naturally generate rich datasets:
- Image archives and inspection results support continuous improvement initiatives and Six Sigma programs.
- Linking inspection data with serial numbers improves traceability, which is a critical requirement in regulated industries like medical devices and pharmaceuticals.
- Quality records simplify compliance with industry standards and customer audits.
The ability to demonstrate consistent, documented quality performance can open doors to new customers and markets, an intangible but powerful contributor to ROI.
Best Practices for Maximizing Machine Vision ROI
To achieve strong ROI, several best practices are recommended:
- Start with a Clear Business Case: Define baseline scrap rates, rework costs, line speeds, and labor usage before implementation. This makes it easier to quantify improvements after go-live.
- Engage Experienced Machine Vision Engineers: Proper system design—especially lighting, optics, and fixture design—has a direct impact on performance, reliability, and maintainability.
- Pilot and Scale: Begin with a focused pilot on a high-impact application, validate the performance and financial results, and then scale to additional lines or plants.
- Plan for Maintenance and Support: Include provisions for regular lens cleaning, lighting replacement, and software updates to maintain system performance over the long term.
With a disciplined approach, Machine Vision becomes a strategic asset rather than a one-off project, delivering ongoing returns as additional applications are brought online.
Why Machine Vision Is Now a Strategic Necessity
Machine Vision is no longer a niche technology; it is a foundational element of digital manufacturing and Industry 4.0. As global competition increases and customer expectations rise, manufacturers must maintain high quality at high speed while controlling costs. Machine Vision delivers on all three fronts:
- It ensures quality through consistent, objective inspection.
- It supports speed by keeping pace with modern automated lines.
- It controls cost through reduced scrap, rework, and manual inspection labor.
By coupling machine vision technology with AI, robotics, and data analytics, and the best machine vision integrator, organizations create smarter factories that learn from every part produced. For companies seeking to future-proof their operations, investing in Machine Vision is not just about solving today’s inspection challenges; it is about building a platform for continuous improvement and long-term competitive advantage.
