The ROI of machine vision systems present transformative gains, but executives demand proof: hard numbers showing payback, NPV, and alignment with KPIs like OEE and DPPM. This guide equips you to build an airtight business case, quantifying labor savings, scrap reduction, and compliance value to justify investments from $20k smart cameras to $200k+ robotic vision inspection lines. Average ROI hits 6–18 months, per Sciotex deployments—here’s how to prove it for your plant.
Why ROI Matters for Machine Vision Systems
Capex scrutiny is fierce; vague “efficiency gains” won’t cut it. Machine vision systems tackle multiple costs simultaneously: quality escapes (rework/claims), labor (manual inspection), and materials (overfills/scrap). For a mid-size line shipping 1M parts/year at 2% defect rate, that’s $100k+ in avoidable losses.
A strong case ties to metrics: reduce DPPM from 5,000 to 50; lift OEE 10–15%; cut inspector headcount 50–80%. Explore applications of machine vision systems in manufacturing to identify your highest-ROI use case, like defect detection or counting.
Cost Components of Machine Vision Systems

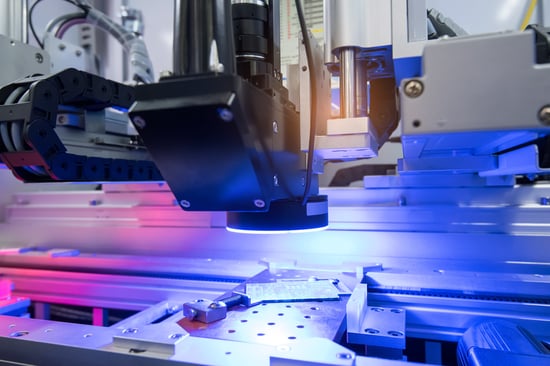

Here is an example of a small benchtop type machine vision system that is manually loaded with parts and a standard 2D or 3D image capture and analysis.
Upfront capital (60–70% of total):
- Hardware: $5k–$50k (cameras $2k–$10k, lighting/optics $1k–$5k, PC/enclosure $5k).
- Engineering/integration: $10k–$50k (design, programming, FAT).
- Basic Mechanical and Electrical Design and System Assembly: $5k-$25k
- Installation: $5k–$15k.
Ongoing OPEX (5–10% annually):
- Maintenance: $2k–$5k (calibrations, lighting).
- Software licenses/updates: $1k–$3k.
- Training: $2k initial.
Total first-year: $30k–$150k for typical small lines. Scale favors larger systems via shared engineering.
Savings Drivers: Where Machine Vision Systems Pay Off
Quantify baseline vs. post-vision costs across four levers.
Labor elimination: Manual inspection at $25/hr × 2,000 hrs/year/station = $50k. Machine vision can cut this 70–90%, freeing operators for assembly ($35k–$45k savings).
Scrap/rework reduction: 3% defect rate × $2/part × 500k parts = $30k. Vision drops to 0.1% ($1k), saving $29k.
Claims avoidance: 1% returns × $50 avg claim × 10k orders = $50k. Near-zero escapes save nearly all.
Overfill/scrap: 5% padding in kits = $10k materials. Precise counts end this.
Intangibles: 99% uptime boosts OTIF; data enables SPC for 5–10% yield gains.
| Cost Driver | Annual Baseline Cost | Post-Vision Cost | Savings |
| Labor | $50k/station | $10k | $40k |
| Scrap/Rework | $30k | $1k | $29k |
| Claims | $50k | $2k | $48k |
| Overfill | $10k | $1k | $9k |
| Total/Station | $140k | $14k | $126k |
Building an ROI Model
Use this Excel-ready formula: Annual Savings = (Labor Saved × Rate) + (Scrap Avoided × Cost/part) + (Claims Avoided × Avg Value) + (Overfill Saved × Volume).
Example: Electronics kitting line
- Baseline: 2% miscounts on 1M kits/year × $5 rework = $100k; 4 inspectors = $200k labor.
- Vision: machine vision systems for automated counting and packaging at 99.9% accuracy; 1 operator oversight.
- Savings: $95k rework + $150k labor = $245k/year.
- $80k system → 4-month payback, 400% ROI Year 1.
NPV over 5 years (10% discount): $800k+. Sensitivity: ±20% defect rate still yields 200%+ ROI.
Case-Style Scenarios
Scenario 1: High-Volume Consumer Goods Inspection
Bulk candy bagging: 5% under/overfill = $50k/year. Conveyor machine vision systems for counting parts at 10k ppm saves $45k + $30k labor. Payback: 5 months.
Scenario 2: Automotive Assembly Verification
Weld inspection: 2% escapes → $200k recalls. Robotic vision drops to 0.05%; saves $195k + compliance value. Integrates with different machine vision system architectures. Payback: 9 months.
Scenario 3: Pharma Serialization
Label/code checks: Manual 1% errors = $100k fines. Smart cameras ensure 100% traceability. Payback: 6 months.
Risk Management and Intangibles
Quantifiable risks: 5% downtime buffer in model; pilot mitigates integration snags.
Upside: Brand protection (reduced recalls); labor flexibility amid shortages; SPC data cuts future defects 20%. MES ties enable Industry 4.0 dashboards.
How to Present the Business Case Internally
- Executive summary: 1-pager with payback, NPV, KPI impact.
- Pilot proof: Propose $10k–$20k POC on one line.
- Roadmap: Scale to 5 stations Year 1, site-wide Year 2.
- Vendors: Position Sciotex as your machine vision systems integrator for end-to-end accountability.
Tie to strategy: “This funds itself while hitting OEE targets and shielding margins.”
Next Steps
Build your case with real data—contact Sciotex at (610) 459-9646 for pilot scoping. Transform quality from cost to asset with machine vision systems engineered for your lines.lity assessment and custom POC.
