ENGINEERING GUIDE
Industrial AI: How AI Is Used in Manufacturing
Where artificial intelligence earns its place on a production line and where it doesn’t: AI vision inspection, counting and sorting, automated test, sensor and DAQ data, the models behind each, edge hardware, what vision language models can really do in 2026, and how to build the business case. Written by engineers who have built industrial systems since 1997.
Last updated October 2026 · Written by Sciotex Engineering · 13 min read
DEFINITION
What is industrial AI?
Industrial AI is the use of artificial intelligence, mostly machine learning and deep learning models, to make or support decisions in physical production: inspecting parts, counting and sorting product, judging test results, predicting equipment problems and guiding robots.
AI in manufacturing differs from office AI in three ways: it works on images and sensor signals rather than text, it has to decide within the line's cycle time, and a wrong answer means scrap, a recall or a stopped line, so it must be validated like any other piece of production equipment.
The terms are often used loosely. Artificial intelligence is the broad goal of software that makes judgments. Machine learning is the main way to get there: the system learns a decision from examples instead of following rules a programmer wrote. Deep learning is machine learning with large neural networks, and it is what made modern AI vision possible. Rule-based or classical systems, such as traditional machine vision measuring an edge to a tolerance, are not AI at all, and for many jobs they are still the better choice.
In practice, industrial AI is rarely a separate product. It is one component inside a machine vision system, a counting machine, a test station or a data acquisition system, sitting between the sensor that collects the data and the PLC, reject gate or database that acts on the answer.
HOW IT WORKS
How industrial AI works: from sensor to decision
Every industrial AI system has two loops. The run-time loop happens on every part: a sensor captures data, a trained model makes a prediction in milliseconds, and the result drives an action. The learning loop happens offline: data is collected and labeled, a model is trained and validated, and it is redeployed when the process changes.
The model is only one block. Most failed AI projects fail on the blocks around it: lighting that hides the defect, a sensor sampled too slowly, or no clean way to send the decision to the line. The learning loop looks like this:
APPLICATIONS
How AI is used in manufacturing: six applications that work today
AI in manufacturing covers everything from demand forecasting to scheduling. This guide focuses on the plant floor, where AI makes decisions about physical parts and signals, and where Sciotex designs and builds systems.
1AI visual inspection
Deep learning finds cosmetic and surface defects that are hard to describe with rules: scratches on textured parts, contamination, mis-assembly. Read how AI vision systems work and how AI quality control fits into a QA program.
2Defect detection and classification
Beyond pass/fail, AI sorts defects by type and severity so process engineers see why parts fail. See AI defect detection and classification.
3Counting and sorting
Image analysis, AI-based where parts touch, overlap or vary, counts and sorts mixed product faster than scales or hand counts. See AI counting and sorting and the automated counting guide.
4Automated test
Machine learning on test results flags marginal units, spots drifting stations and shortens test time. See AI in automated test equipment and the automated test equipment guide.
5Sensor data and predictive maintenance
Models trained on vibration, current, pressure and temperature signals detect anomalies and early wear. See AI anomaly detection and AI predictive maintenance; it all starts with good data acquisition.
6Vision-guided robotics
AI locates and classifies parts so a robot can pick, present or inspect them, as in our robotic vision inspection system.
MODEL TYPES
Types of AI models used in industrial systems
“AI” covers very different tools. Picking the right one matters more than picking the newest one. The table runs from classical (non-AI) machine vision to large language models.
| Approach | What it does | Typical use on the line | Training data | Fits high-speed inline use? |
|---|---|---|---|---|
| Rule-based machine vision (not AI) | Measures and compares with hand-set tolerances | Gauging, presence/absence, alignment, barcode and OCR on consistent parts | None, just setup | Yes, fastest and fully explainable |
| Image classification (CNN) | Labels a whole image or region: good/bad or defect type | Cosmetic grading, sorting by type | Labeled good and bad images | Yes |
| Object detection and segmentation | Finds and outlines each object or defect | Counting touching parts, locating defects, robot guidance | Images with boxes or masks drawn | Yes, on GPU or accelerator |
| Anomaly detection | Learns "normal" and flags anything different | Rare or unknown defects, new products with few bad samples | Mostly good parts | Yes |
| Time-series machine learning | Finds patterns in sensor signals | Predictive maintenance, test-result analytics, process drift | Logged DAQ or test data | Yes, often on the controller |
| Vision language model (VLM) | Describes images and answers questions about them in natural language | Defect triage and explanation, natural-language queries, operator assistance | Pre-trained; optional fine-tuning | Usually not, too slow and costly per image |
| Large language model (LLM) | Reads and writes text and code | Work instructions, report summaries, drafting test sequences, troubleshooting help | Pre-trained on text | No, supports engineers and operators |
Swipe the table to see all columns →
Most production systems combine several rows. Physical machines that act on these decisions are covered in physical AI. A typical inspection station uses rule-based tools to locate and measure a part, a deep learning model to judge cosmetic defects, and a database to trend the results. For the network architectures behind the AI rows, see deep learning techniques for AI vision.
AI OR RULES?
When to use AI, and when rule-based is better
The most useful question in an industrial AI project is often “does this need AI?” Deep learning wins on variable, judgment-based decisions. Rule-based tools win on precise, repeatable measurements.
Use AI when…
- Defects are cosmetic, irregular or hard to describe with a rule
- Good parts vary naturally (textures, wood, food, castings, cables)
- Parts touch, overlap or arrive in random orientations
- You need to sort by defect type, not just pass/fail
- Inspectors disagree and you want one consistent standard
- You can collect representative images of good parts and real defects
Stick with rule-based when…
The job is a measurement: a dimension to a tolerance, a hole present or not, a label in the right place. Classical tools are faster, need no training data and give a traceable number an auditor can check.
Many Sciotex systems use no AI at all, and many use both. We choose per inspection, after testing real parts. The trade-offs are covered in depth in deep learning vs rule-based machine vision.
2026 REALITY CHECK
VLMs and LLMs on the factory floor: what is real today
Vision language models (VLMs) pair an image encoder with a language model, so instead of returning “defect, 0.97” they can describe what they see and answer follow-up questions. Large language models (LLMs) work on text only. Both are moving onto the plant floor, but in supporting roles rather than as the inline pass/fail decision.
Where they help now: triaging and describing unusual defects a production model flagged, letting engineers query inspection results in plain English, drafting work instructions and test-report summaries, and helping write test sequences and code. Where they fall short: on MMAD, a 2024 benchmark of multimodal models on industrial anomaly detection, the best commercial model averaged about 75% accuracy, far below the 99%+ a production inspection needs. Go deeper in VLM vs LLM and how VLM image tokens are counted.
DEPLOYMENT
Edge vs cloud: where industrial AI runs
Production decisions have a deadline. At 300 parts per minute, each part gets 60 ÷ 300 = 0.2 seconds (200 ms), and trigger, exposure, image transfer, inference and the reject actuator all have to fit inside it. A round trip to the cloud adds network delay that varies from call to call, so inline decisions run locally, at the edge.
Industrial PC with GPU
The workhorse for AI vision: runs detection, segmentation and anomaly models on several cameras at line rate, with room for logging and the operator screen. Compare processors in edge AI hardware: GPU, CPU, FPGA and NPU.
Smart camera or embedded module
Camera and AI accelerator in one housing. Compact and lower cost per point, but with less compute, best for a single, well-defined check.
On-premise server or cloud
Where training, retraining, fleet dashboards and VLM review happen. Good for anything that is not on the part’s critical path.
IMPLEMENTATION
How to implement AI in a manufacturing process
Successful projects start with the decision, not the algorithm. These six steps are the same whether the AI judges images, test data or sensor signals. The full step-by-step roadmap is in how to use AI in manufacturing, and data volumes are covered in how much training data AI visual inspection needs.
BUSINESS CASE
The business case: where industrial AI pays back
AI pays back the same way other automation does: less labor on repetitive judgment tasks, less scrap and rework, fewer escapes to customers, and data that helps fix the process upstream. The quickest wins are high-volume, repetitive decisions that people find tiring and inconsistent.
On Sciotex projects, payback can be a few weeks for automated counting and 7–12 months for vision inspection systems. For a worked model, see how to build the business case for machine vision.
REAL-WORLD EXAMPLES
AI systems we have built
These Sciotex systems use AI where it beats rules: on variable surfaces, touching parts and defects that are hard to define. Each one also uses classical image analysis where a measurement is the better tool.

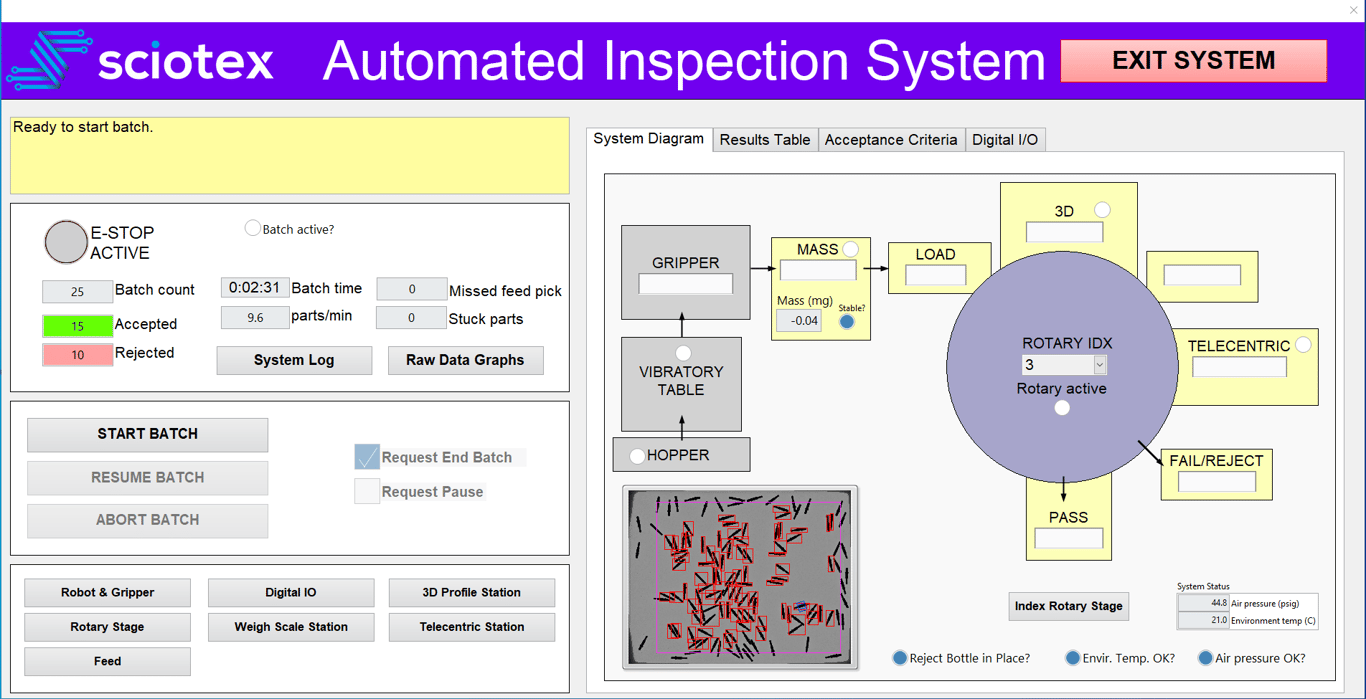

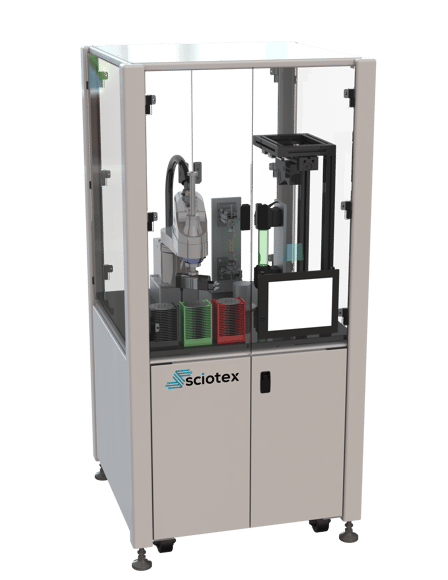

Robotic AI inspection
A robot presents small, high-tolerance parts to cameras; AI models classify surface defects alongside precise metrology.
View system →
Surface defect detection
A benchtop platform that finds and classifies scratches, dents and contamination on part surfaces.
View system →

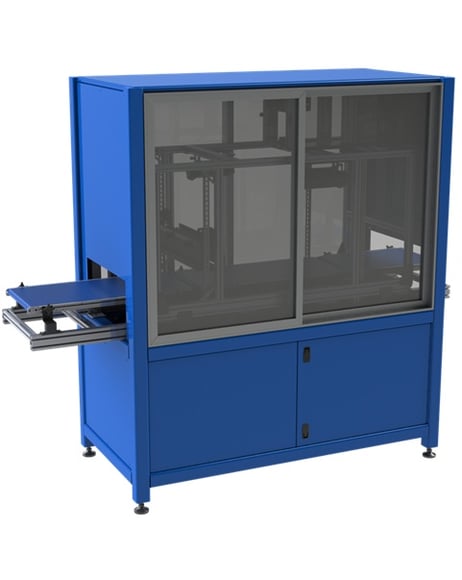

Conveyor AI inspection
2D and 3D image analysis with AI and ML inspects parts in motion and rejects defects inline.
View system →

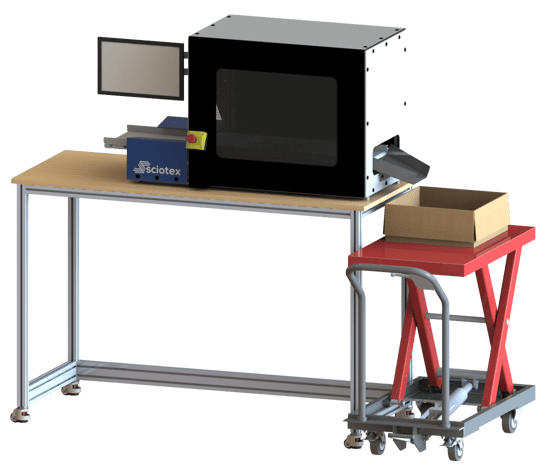

AI counting on a conveyor
AI distinguishes and tracks parts even when they touch or partially overlap on the belt.
View system →

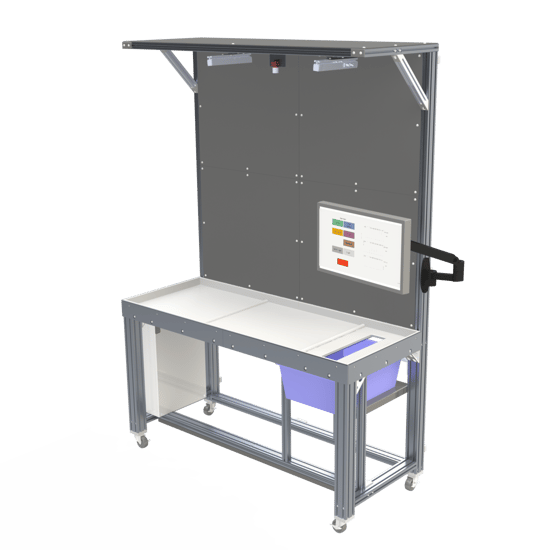

AI counting on a benchtop
Spread parts in a tray, take one snapshot and get an AI count in seconds.
View system →
Pallet inspection
AI and ML image analysis checks pallets and loads for damage and stacking problems.
View system →
KEEP LEARNING
Industrial AI articles
AI Vision: How Is AI Used in a Vision System?
What AI adds to a vision system and how deep learning inspection works.
Read article →
How to Use AI for Quality Control
Where AI fits in a quality program, from inspection to traceability.
Read article →
AI Defect Detection
Surface defect types, lighting, model choices and reject limits.
Read article →
Deep Learning vs Rule-Based Vision
When AI is worth it, and when classical vision is better.
Read article →
AI Anomaly Detection
Finding rare and unknown defects by learning from good parts.
Read article →
Training Data for AI Inspection
How many images you need, labeling and rare defects.
Read article →
VLM vs LLM
How vision language models differ, and whether they can inspect parts.
Read article →
VLM Token Usage
How image tokens are counted and what they cost at line rate.
Read article →
AI Counting and Sorting
How AI counting works and when it beats scales and simple vision.
Read article →
AI in Automated Test Equipment
Outlier screening, station drift, test time and failure analysis.
Read article →
AI Predictive Maintenance with DAQ
Sensors, sample rates, features and models for machine health.
Read article →
Physical AI
AI that senses, decides and acts through machines on the factory floor.
Read article →
How to Use AI in Manufacturing
A step-by-step roadmap from use case to validated system.
Read article →
Edge AI Hardware
GPU vs CPU vs FPGA vs NPU for AI and traditional machine vision.
Read article →
Deep Learning Techniques for AI Vision
CNNs, attention and the networks behind AI vision.
Read article →
Transfer Learning in AI Vision
How pre-trained networks cut the images needed to train a model.
Read article →
FAQ
Industrial AI FAQs
What is industrial AI?
Industrial AI is the use of artificial intelligence, mainly machine learning and deep learning, to make or support decisions in physical production: inspecting and counting parts, judging test results, detecting equipment anomalies and guiding robots. Unlike office AI, it works on images and sensor signals and must decide within the production cycle time.
How is AI used in manufacturing?
On the plant floor, the most proven uses are AI visual inspection and defect classification, counting and sorting of variable or touching parts, analysis of automated test results, anomaly detection and predictive maintenance on sensor data, and vision-guided robotics. Away from the floor, AI is also used for forecasting, scheduling and supply chain planning.
What is the difference between industrial AI and machine vision?
Machine vision is the system: cameras, lighting, optics and software that inspect or measure parts. Industrial AI is one kind of software that can run inside it. Many machine vision systems use only rule-based tools, some use only AI, and many use both.
Does every vision inspection system need AI?
No. Measurements such as dimensions, presence and position are usually faster, cheaper and easier to validate with rule-based machine vision. AI is worth it when defects are irregular, good parts vary naturally or the decision needs human-like judgment.
How many images are needed to train an AI inspection model?
It depends on how consistent the parts and lighting are and how many defect types matter. A proof of concept often starts with a few hundred good images and dozens of real examples of each defect type. Anomaly detection models can start from mostly good parts, which helps when defects are rare.
Can vision language models replace AI inspection models?
Not for inline pass/fail decisions today. VLMs are slower and costlier per image, and on industrial anomaly benchmarks they still fall well short of production accuracy. They are useful alongside a purpose-trained model, to triage and explain flagged parts and to let engineers query results in plain language.
Does industrial AI need the cloud?
Not for production decisions. Inline inference runs at the edge, on an industrial PC, GPU or smart camera at the line, so decisions arrive within the cycle time and keep working if the network drops. The cloud or an on-premise server is used for training, retraining and fleet-level reporting.
What does an industrial AI system cost, and how fast does it pay back?
Cost depends on the number of inspection points, part handling, cameras and lighting, compute, integration with the PLC and MES, and how much data collection and validation is needed. On Sciotex projects, payback can be a few weeks for automated counting and 7–12 months for vision inspection.
Need AI that works on your production line?
Sciotex has designed, programmed and supported custom automation since 1997, and builds industrial and manufacturing AI systems for inspection, counting, test and data acquisition. We test on your parts first and use AI only where it beats the alternatives.
