A counting scale estimates how many parts are in a batch by weighing the batch and dividing by the average weight of one piece. Automated counting counts every piece individually with cameras. A counting scale is the right tool for uniform parts at modest volumes. Automated counting is the better choice when part weight varies, volumes are high, or a miscount is expensive.
Counting scale vs. counting machine, in short: a counting scale estimates the count from weight, so it is fast and inexpensive for uniform parts but drifts when piece weight varies. A counting machine counts every piece with cameras, so weight does not matter and every count is exact and recorded. This article is part of our complete guide to automated counting.
What Is a Counting Scale?
A counting scale is a weighing scale with a built-in calculator. It never sees individual parts. It measures total weight and converts that weight into a piece count, so the count is always an estimate based on weight.
Types of Counting Scales
- Bench counting scales. A single platform on a workbench. The same platform weighs the sample and the batch.
- Dual-platform counting scales. A small, sensitive scale weighs the sample and a larger platform weighs the batch, which improves the average piece weight for light parts.
- Floor counting scales. A large platform for counting full bins, drums or pallets of parts.
- Counting balances. High-resolution laboratory balances for very small, very light parts.
All four work the same way. They differ in capacity and in how finely they can resolve weight.
How Counting Scales Work
- Sample. The operator places a known number of parts on the scale, for example 50 pieces.
- Average piece weight. The scale divides the sample weight by the sample quantity and stores the result.
- Count. The operator loads the full batch. The scale divides the batch weight by the average piece weight and displays the count.
The whole method rests on one assumption: every part weighs the same as the average part in the sample.
A worked example
As an illustration, a 50-piece sample weighs 100 g, so the scale stores an average piece weight of 2.00 g. The batch weighs 10,000 g, and the scale displays 5,000 pieces. If the parts in that batch actually average 2.02 g, just 1% heavier than the sample, the batch holds about 4,950 pieces. The box ships 50 pieces short and the scale never shows it.
How Accurate Is a Counting Scale?
A counting scale is as accurate as that assumption is true. Five things decide it:
- Piece weight variation. Molded, plated, cast and natural parts vary from piece to piece and from lot to lot. Even slight variation in average weight can mean being dozens of pieces off in each box.
- Sample size. A small sample gives a poor average, and the error is multiplied across the batch.
- Scale resolution. Very light parts can weigh less than the scale can reliably resolve.
- Containers and contamination. Tare weight, oil, dust and packaging all count as parts unless they are removed from the weight.
- Mixed or foreign parts. A scale cannot tell a wrong part from a right one. It only sees weight.
Most operations protect themselves against these errors by overfilling. Every package gets a few extra pieces so that none ships short, and that giveaway becomes a permanent cost.
When a Counting Scale Is the Right Tool
Counting scales are inexpensive, simple and fast for the right job. They are a sound choice when:
- Parts are uniform in weight and come from a consistent process.
- Volumes are low to moderate and counted in batches.
- A small overfill costs little.
- No inspection or count record is required.
What Is Automated Counting?
Automated counting uses cameras and image analysis software to count each part directly, with no reference to weight. Sciotex builds these systems in three main forms:
- Drop zone counting. Parts fall past a high speed camera that images them from two angles. A drop zone counting machine counts up to 2,000 parts per second, with accuracy better than 99.99% at lower feed rates and above 99.5% at hundreds of parts per second for most parts.
- Conveyor counting. Cameras above a belt count parts in motion, including parts that touch or partly overlap, and send live counts to the line’s controls.
- Benchtop counting. An operator places parts in a tray under a camera and gets a count in seconds, which suits kitting and QC sampling.
See the full range of high speed counters for how the types compare.

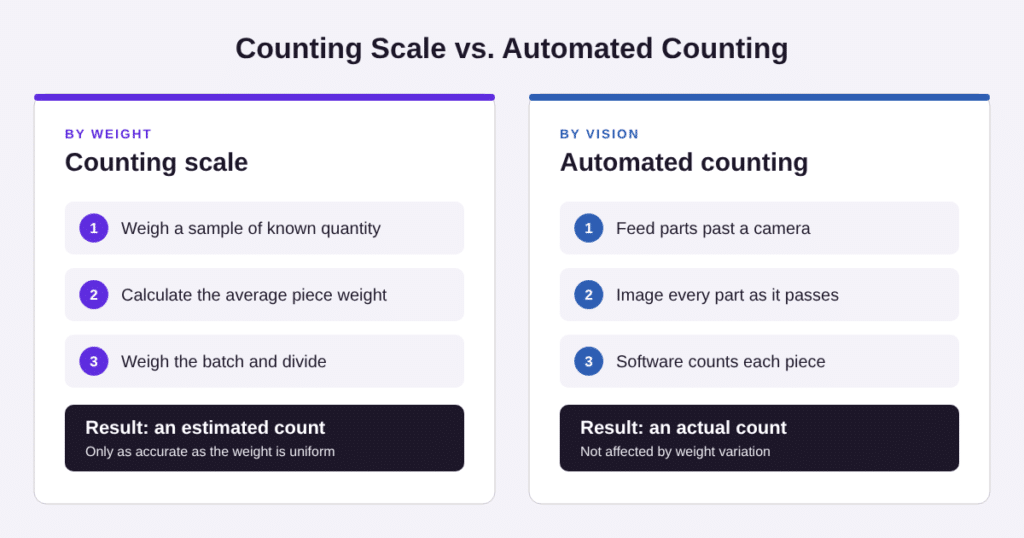

Counting Scales vs. Automated Counting: Side-by-Side
The two methods reach a count in different ways. A counting scale works from weight, and automated counting works from images of each part.
That difference in method shows up in accuracy, throughput, changeover and cost. The table below compares the two factor by factor.
| Factor | Counting scales | Automated counting |
|---|---|---|
| Method | Estimates the count from batch weight divided by average piece weight | Counts each part directly with cameras |
| Accuracy | Depends on uniform piece weight and good sampling | High, and not affected by weight variation |
| Mixed or foreign parts | Cannot detect them; they distort the count | Can recognize and ignore or flag them |
| Throughput | Fast for single batches, one batch at a time | Continuous, in-line counting at high speed |
| Part types | Best for small, simple, uniform parts | Handles irregular, touching and overlapping parts |
| Changeover | New sample and average weight for each lot | Stored recipes for each part |
| Inspection | None | Optional quality checks while counting |
| Data | Totals and weights | Counts, images and run history |
| Line integration | Usually stand-alone at a packing station | Built to connect to packaging and production lines |
| Cost | Low purchase cost, with ongoing overfill and miscount costs | Higher purchase cost, recovered through accuracy and throughput |
Signs You Have Outgrown a Counting Scale
- You overfill every package to avoid shipping short.
- Customers report short counts, or inventory never reconciles.
- Operators re-sample often because piece weight changes between lots.
- Counting has become the bottleneck at packing.
- Your parts are too light, too varied or too mixed to weigh reliably.
- Customers or regulators require a record of every count.
How to Estimate the Payback
Start with overfill. As an illustration, if you overfill a 1,000-piece bag by 2%, you give away 20 pieces in every bag. Multiply that by your piece cost and the number of bags you ship in a year. Then add the labor spent sampling, re-counting and resolving short-shipment claims.
See what overfill is costing you
Compare packing by scale with a standard drop zone counter using your own numbers.
Frequently Asked Questions
They are accurate when every part weighs nearly the same and the sample is large enough. Accuracy falls as piece weight varies, because the scale is estimating the count from weight.
No. A counting scale measures total weight only, so it cannot separate or identify different parts in the same batch.
The main alternative is a vision-based counting machine, which counts each part individually with cameras instead of estimating from weight.
Yes. We often integrate them. Many operations also keep scales for low-volume or uniform parts and move high-volume, variable or high-value parts to automated counting.
