Automated Quality Inspection is a critical component of the manufacturing quality control processes, ensuring products meet specified standards and customer expectations. Traditionally, manual quality inspection has been the norm, relying on human inspectors to identify defects and ensure quality. However, with advancements in technology, machine vision systems have emerged as a powerful alternative, offering several advantages over manual inspection. This case study explores the improvements in quality inspection through the adoption of machine vision and further enhancements enabled by artificial intelligence (AI) and machine learning (ML).

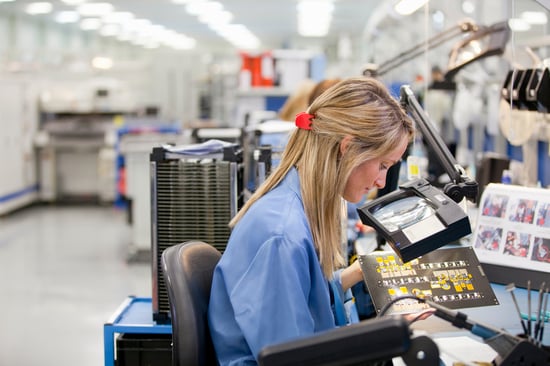

Manual Quality Inspection

Manual quality inspection involves human operators examining products for defects and anomalies. This method has been widely used due to its straightforward implementation and the human ability to perceive and evaluate complex visual cues. However, it is not without limitations:

  1. Subjectivity: Human inspection is inherently subjective, with variability between inspectors and even the same inspector at different times.
  2. Fatigue: Inspectors can become fatigued, leading to decreased accuracy and missed defects.
  3. Speed: Manual inspection can be slow, limiting the throughput of the production process.
  4. Consistency: Maintaining consistent inspection standards is challenging, particularly in high-volume manufacturing environments.

Machine Vision Quality Inspection

Machine vision systems use cameras and image processing algorithms to inspect products. These systems can detect defects by comparing captured images to predefined standards. Key improvements of machine vision over manual inspection include:

  1. Objectivity: Machine vision provides consistent, objective evaluations, eliminating variability between inspections.
  2. Speed: These systems can process images rapidly, enabling high-speed inspection and increasing production throughput.
  3. Accuracy: Machine vision systems can detect defects with high precision, often surpassing human capabilities.
  4. Consistency: Once calibrated, machine vision systems maintain consistent inspection standards without fatigue or human error.

Case Example: Automotive Industry

In the automotive industry, machine vision systems have been widely adopted to inspect components such as engine parts, body panels, and electrical assemblies. For instance, a leading car manufacturer implemented a machine vision system to inspect welds on car body panels. The system used high-resolution cameras and sophisticated image processing algorithms to detect defects such as incomplete welds, porosity, and cracks. Compared to manual inspection, the machine vision system increased detection accuracy by 30%, reduced inspection time by 50%, and eliminated the variability associated with human inspectors.

Enhancements with AI and Machine Learning

While traditional machine vision systems offer significant improvements over manual inspection, integrating AI and ML can further enhance performance. Manufacturing AI and ML algorithms can learn from data, improving defect detection capabilities and adapting to new inspection requirements. Key enhancements include:

  1. Adaptive Learning: AI/ML models can learn from historical inspection data, improving their ability to detect new and previously unseen defects.
  2. Predictive Maintenance: By analyzing patterns in inspection data, AI/ML can predict when equipment maintenance is needed, reducing downtime and preventing defects caused by equipment wear.
  3. Improved Accuracy: AI/ML algorithms can analyze complex patterns and subtle differences in images, increasing defect detection accuracy.
  4. Automation: Advanced AI/ML systems can automate the entire inspection process, from image capture to defect classification and reporting.

Case Example: Electronics Manufacturing

In the electronics manufacturing industry, precision and accuracy are paramount. A major electronics manufacturer integrated an AI/ML-enhanced machine vision system to inspect printed circuit boards (PCBs). The system used convolutional neural networks (CNNs), a type of deep learning algorithm, to analyze images of PCBs and detect defects such as solder joint issues, component misalignment, and surface contamination.

Improvements Observed:

  1. Detection Accuracy: The AI/ML-enhanced system achieved a defect detection accuracy of 98%, a significant improvement over the 85% accuracy of the previous manual inspection process.
  2. Inspection Speed: The system reduced inspection time by 60%, allowing for higher production throughput.
  3. Adaptability: The AI/ML models continuously improved as they were exposed to more data, adapting to new defect types and inspection requirements.
  4. Cost Reduction: By reducing the number of defective products and rework required, the manufacturer saw a 20% reduction in overall production costs.

Comparative Analysis

To comprehensively compare manual quality inspection with machine vision and AI vision systems, we can evaluate several key performance indicators (KPIs):

  1. Accuracy and Precision: Machine vision systems, especially when enhanced with AI/ML, consistently outperform manual inspection in terms of accuracy and precision. Human inspectors can miss subtle defects that AI/ML algorithms can detect by analyzing large amounts of image data.
  2. Speed and Throughput: Machine vision systems operate at a much higher speed than manual inspection, significantly increasing production throughput. AI/ML enhancements further optimize the inspection process, enabling real-time analysis and decision-making.
  3. Consistency and Reliability: Machine vision provides consistent and reliable inspections without the variability inherent in human inspection. AI/ML systems maintain high performance even as inspection requirements evolve.
  4. Cost Efficiency: Although the initial investment in machine vision and AI/ML systems can be high, the long-term cost savings are substantial. Reduced labor costs, decreased defect rates, and lower rework expenses contribute to overall cost efficiency.
  5. Adaptability and Scalability: AI/ML-enhanced machine vision systems are highly adaptable and scalable. They can learn from new data and be easily reconfigured for different inspection tasks, making them suitable for diverse manufacturing environments.

Future Directions and Innovations

The integration of AI and ML with machine vision is continually evolving, promising even greater advancements in quality inspection. Future innovations may include:

  1. Edge Computing: Deploying AI/ML algorithms on edge devices close to the production line can reduce latency and enable real-time defect detection and correction.
  2. Explainable AI (XAI): Enhancing AI/ML systems with explainability features can provide insights into why certain defects were detected, improving trust and facilitating continuous improvement.
  3. Robotic Integration: Combining AI/ML-enhanced machine vision with robotic systems can enable fully automated inspection and correction processes, further reducing human intervention and increasing efficiency.
  4. Augmented Reality (AR): Integrating AR with machine vision systems can provide human inspectors with augmented visual feedback, highlighting potential defects and assisting in decision-making.

Case Example: Pharmaceutical Industry

In the pharmaceutical industry, ensuring the quality and safety of products is critical. A leading pharmaceutical company implemented an AI/ML-enhanced machine vision system to inspect vials for defects such as cracks, contamination, and labeling errors. The system used a combination of traditional image processing and deep learning algorithms to analyze images of vials and identify defects.

Improvements Observed:

  1. Detection Accuracy: The AI/ML-enhanced system achieved a defect detection accuracy of 99.5%, significantly higher than the 90% accuracy of the previous manual inspection process.
  2. Inspection Speed: The system inspected vials at a rate of 300 per minute, a threefold increase over manual inspection.
  3. Compliance and Traceability: The system ensured compliance with regulatory standards and provided detailed traceability records, facilitating audits and quality control.
  4. Scalability: The AI/ML models adapted to inspect different vial types and sizes, making the system highly scalable for various production lines.

Challenges and Considerations

While machine vision and AI/ML-enhanced inspection systems offer numerous advantages, there are also challenges and considerations to address:

  1. Initial Investment: The cost of implementing machine vision and AI/ML systems can be high, including hardware, software, and integration expenses. However, the long-term benefits often justify the investment.
  2. Data Quality: AI/ML models require high-quality data for training. Ensuring the availability of labeled and representative data is crucial for system performance.
  3. Complexity and Maintenance: Advanced machine vision systems can be complex to set up and maintain. Regular calibration, software updates, and maintenance are necessary to ensure optimal performance.
  4. Skill Requirements: Implementing and managing AI/ML-enhanced systems require specialized skills and knowledge. Training personnel and hiring skilled professionals is essential for successful deployment and operation.

The transition from manual quality inspection to machine vision and AI/ML-enhanced inspection systems represents a significant leap forward in manufacturing quality control. Machine vision systems offer improvements in accuracy, speed, consistency, and cost efficiency, while AI and ML further enhance these capabilities by enabling adaptive learning, predictive maintenance, and automation.

As demonstrated through various industry examples, AI/ML-enhanced machine vision systems have achieved remarkable improvements in defect detection accuracy, inspection speed, and overall production efficiency. Despite challenges such as initial investment and data quality requirements, the long-term benefits of these systems make them a valuable asset for modern manufacturing.

The future of quality inspection lies in the continued integration of AI and ML with machine vision, driving innovations that will further revolutionize manufacturing processes and ensure the highest standards of product quality and reliability.
