Robotic Vision Inspection System - RVIS

High Tolerance Inspection for Small Parts and Devices

Automated Defect Detection, Mass Verification and Dimensional Inspection

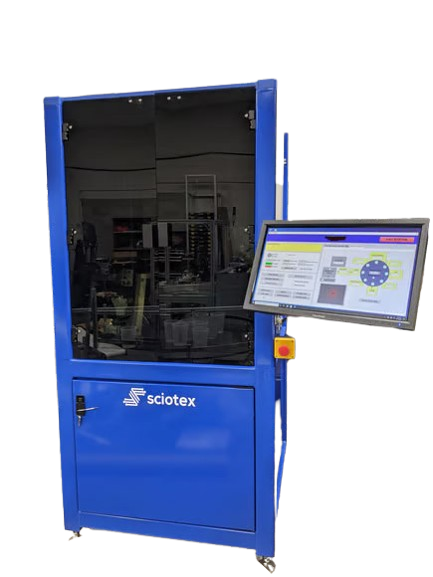

The RVIS Robotic Vision Inspection System from Sciotex is a fully automated robotic platform for inspecting small, high‑tolerance parts for dimensional accuracy, mass, and surface defects. Combining machine vision, robotics, precision weighing, 3D scanning, and AI, SPIS replaces slow, subjective manual inspection with fast, repeatable, data‑driven quality control.

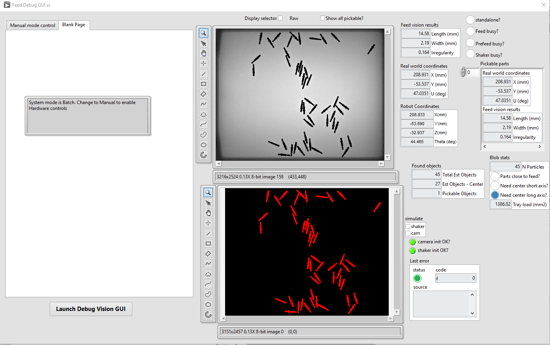

Singulates, presents, and inspects each unit under test (UUT) automatically.
Measures length, width, diameter, height, curvature, and weight in one sequence.
Ideal for high-tolerance medical, energy, electronics and aerospace parts.
Designed for 24/7 continuous operation.
Custom engineered in the US to your part geometry, defect types, and process.

Schedule a Free
Inspection Consultation

Of Manual Inspection Needs Improvement

> 1 %

What RVIS Inspects

RVIS is designed for small, precision parts where tight tolerances and consistent quality are critical.

Medical and life‑science components (e.g., spinal screws, stents, micro‑implants, precision tubing).
Energy and industrial components (e.g., precision fasteners, valve components, small machined parts).
Electronic components (e.g., SMDs, IC packages, connectors, terminals).
Aerospace and defense hardware (e.g., pins, bushings, ceramics, metals).

The RVIS platform is configured for your specific part geometry, materials, and inspection requirements, covering everything from tiny metallic components to molded or machined polymer parts.

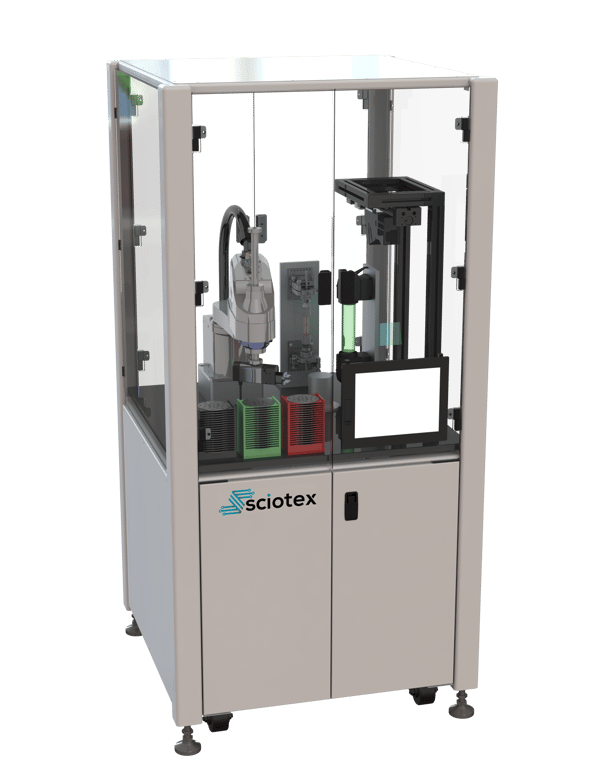

Multi-Station Noncontact Inspection Architecture

RVIS uses a modular, multi‑station architecture so different measurements are performed at dedicated stations optimized for each function.

Station 1 – Precision mass measurement: High‑resolution industrial weigh scale measures mass/weight of each UUT.
Station 2 – 3D surface and profile inspection: 3D scanners or structured light/laser triangulation capture the full 3D surface of the part.
Station 3 – Optical gauging for dimensions and curvature: High‑magnification cameras and telecentric optics measure length, width, diameters, and height.

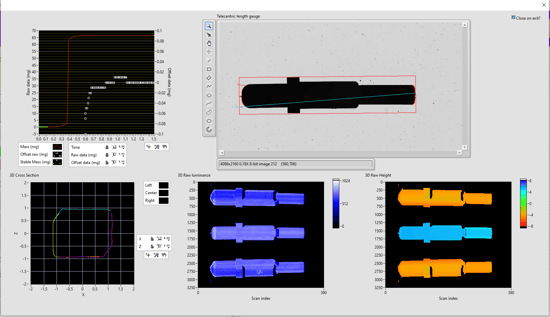

Vision, AI, and Decision Logic

RVIS uses advanced vision software, AI, and metrology algorithms to turn raw images and sensor readings into reliable pass/fail decisions.

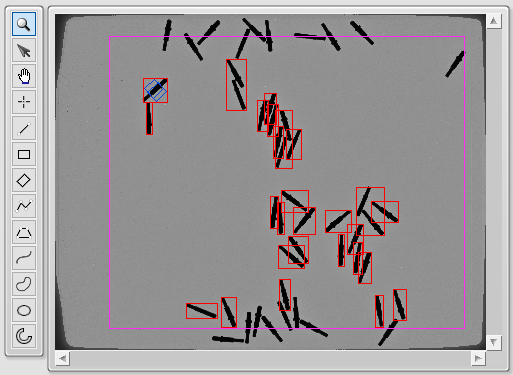

Machine vision pattern matching, edge detection, blob analysis, and 3D reconstruction.
AI and machine learning models for complex surface defect classification and anomaly detection.
Multi‑dimensional tolerance checks combining length, diameter, curvature, and weight.
Configurable pass/fail criteria and grading rules based on your quality standards.

Performance and Throughput

RVIS is designed for continuous, high‑volume inspection of small parts, where tight cycle times and high accuracy must coexist.

Representative performance characteristics:

Throughput: High‑speed inspection enabled by parallel measurement stations and automated handling.
Precision: Capable of micron‑level dimensional accuracy in appropriate configurations.
Stability: Automated fixturing and handling reduce variability compared to manual inspection.
Uptime: Industrial‑grade components and robust software designed for 24/7 operation.

Sciotex engineers tune cameras, optics, lighting, scales, and algorithms to meet your specific tolerance and cycle‑time requirements.

RVIS Demo Video

With RVIS, you get:

Deep expertise at the intersection of machine vision, robotics, AI, and precision metrology.
Proven architectures customized to your parts, tolerances, and throughput.
A single US engineering partner for design, build, integration, and ongoing support.
